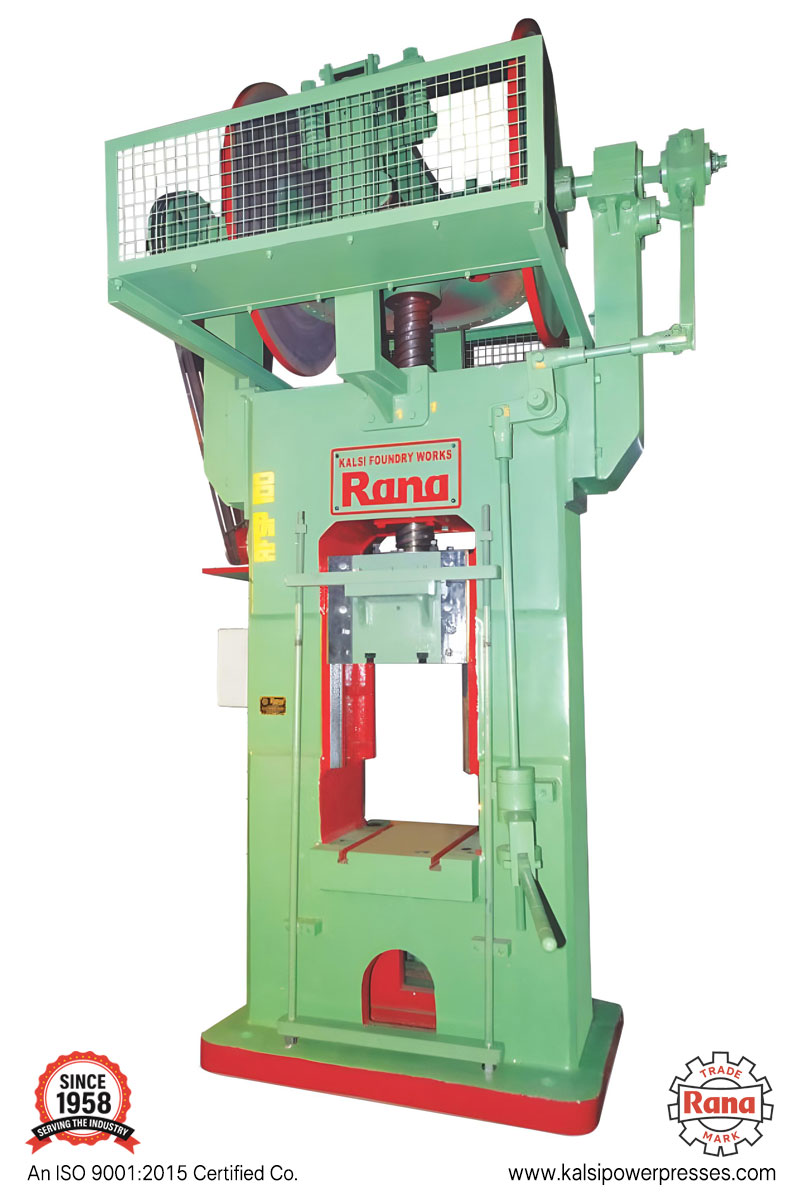

Friction Screw press (Hand operated)
SPECIFICATION IN MM
| MODEL | RFSP-50 | RFSP-100 | RFSP-200 | RFSP-300 | RFSP-400 |
|---|---|---|---|---|---|
| Capacity | 50 Tons | 100 Tons | 200 Tons | 300 Tons | 400 Tons |
| Dia of Screw | 102 | 127 | 165 | 203 | 254 |
| Stroke of Press | 203 | 280 | 355 | 406 | 457 |
| Stroke Per Minute | 40 | 25 | 20 | 15 | 10 |
| Table to Slide (Max.) | 355 | 457 | 560 | 635 | 711 |
| Table to Slide (Min.) | 152 | 178 | 203 | 230 | 254 |
| Size of Table (Front) | 406 | 508 | 585 | 660 | 735 |
| Size of Table (Side) | 355 | 457 | 560 | 610 | 710 |
| Distance Table to Guides | 152 | 203 | 254 | 305 | 355 |
| Distance Between Columns | 406 | 508 | 585 | 660 | 762 |
| Distance Between Guides | 305 | 355 | 432 | 483 | 560 |
| Bore in Table | 76 | 102 | 127 | 152 | 152 |
| Bore in Ram (Shank dia) | 38 | 51 | 64 | 76 | 76 |
| Dimensions of Ram | 305x305 | 355x355 | 432x432 | 483x483 | 535x560 |
| T-Slot in Table | 16 | 16 | 18 | 25 | 25 |
| T-Slot in Ram | 16 | 16 | 16 | 18 | 25 |
| H.P. Required | 7.5 | 10 | 20 | 30 | 40 |
| RPM | 960 | 960 | 960 | 960 | 960 |
| Height | 9'-4" | 10'-4" | 12'-4" | 14'-6" | 15'-6" |
