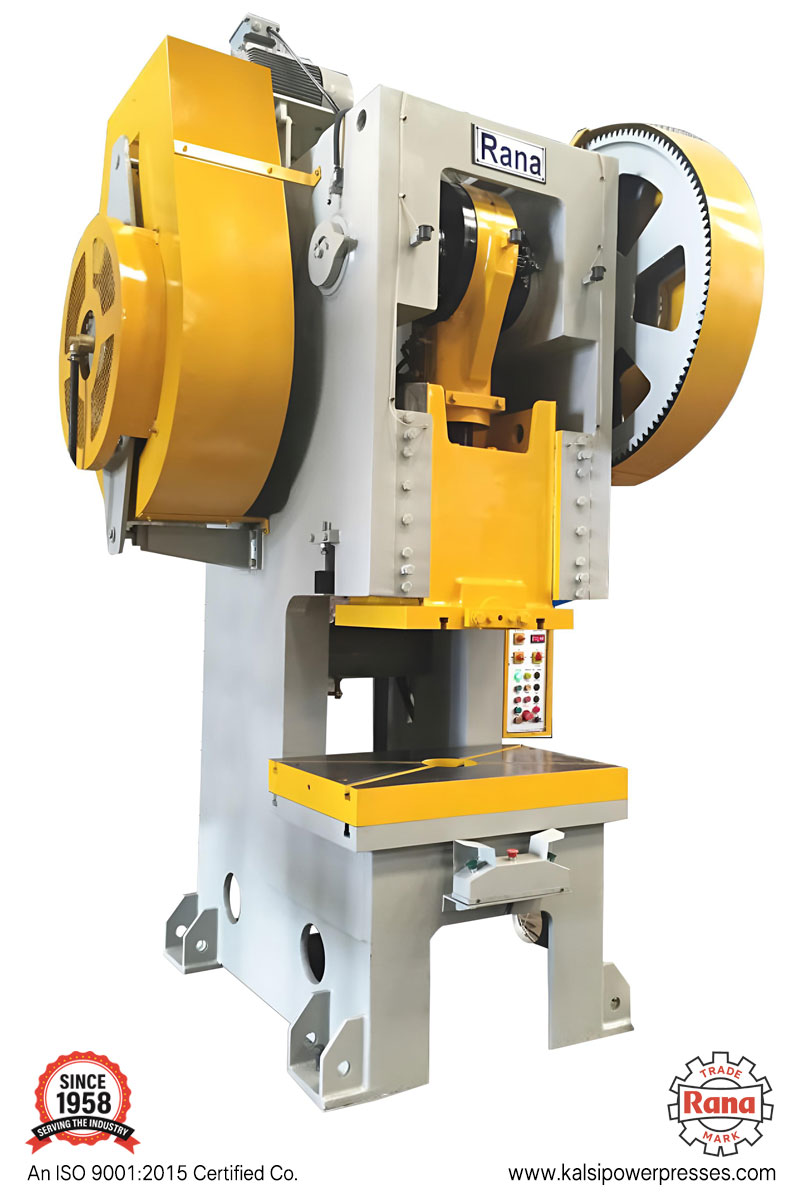

C-frame Pneumatic clutch power press
SPECIFICATION IN MM
| Capacity | 10 Tons | 20 Tons | 30 Tons | 50 Tons | 80 Tons | 100 Tons | 150 Tons | 200 Tons | 250 Tons |
|---|---|---|---|---|---|---|---|---|---|
| Bed Size | 305x457 | 355x533 | 406x610 | 508x762 | 558x813 | 610x915 | 660x1015 | 710x1065 | 762x1118 |
| Bed to Ram | 255 | 305 | 330 | 380 | 430 | 508 | 585 | 635 | 685 |
| Stroke | 55 | 76 | 76 | 102 | 102 | 127 | 150 | 150 | 175 |
| Shank Hole | 25 | 32 | 32 | 38 | 45 | 50 | 55 | 60 | 65 |
| Stroke Per Minute | 60 | 60 | 60 | 50 | 50 | 40 | 35 | 30 | 25 |
| Gear Dia | 457 | 535 | 610 | 660 | 762 | 915 | 1016 | 1118 | 1220 |
| Wheel Dia | 535 | 660 | 710 | 813 | 915 | 990 | 1140 | 1220 | 1320 |
| Floor to Bed | 712 | 762 | 762 | 790 | 790 | 813 | 813 | 813 | 813 |
| Bed bore | 100 | 127 | 140 | 152 | 175 | 200 | 225 | 250 | 275 |
| H.P. Required (1440) | 2 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 |
| Section of Belts | B | B | B | B | B | B | C | C | C |
