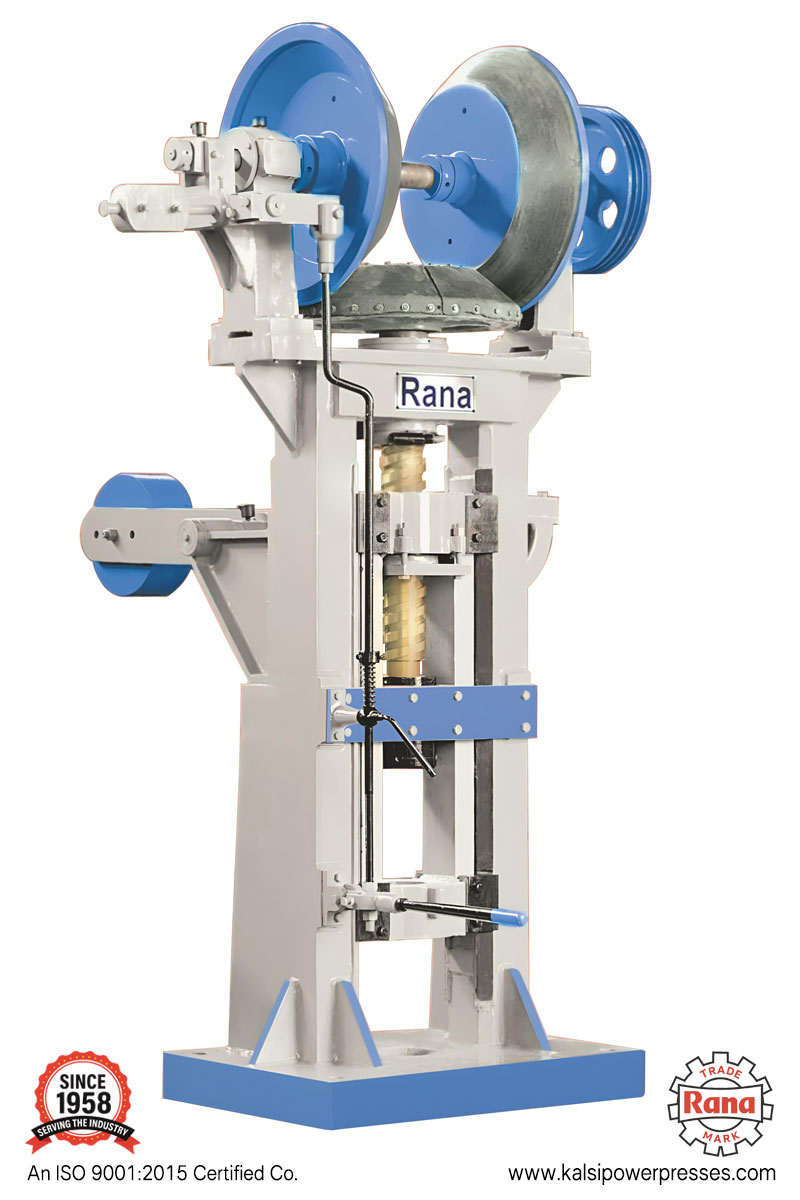

Forging Screw press (up-stroke)
SPECIFICATION IN MM
| MODEL. | No. 3 | No. 2 | No. 1 | No. 0 | No. 00 |
|---|---|---|---|---|---|
| CAPACITY | 50 tons | 100 tons | 150 tons | 250 tons | 350 tons |
| DIA OF SCREW (mm) |
3" | 4" | 5" | 6" | 7" |
| STROKE OF PRESS (mm) |
15" | 16" | 20" | 26" | 32" |
| MAX. LENGTH OF JOB |
8" | 12" | 16" | 20" | 26" |
| MAX. DIA OF JOB | 1/2" | 3/4" | 1¼" | 2" | 2½" |
| STROKE PER MINUTE |
50 | 40 | 30 | 25 | 20 |
| FOUNDATION HOLES |
24"x16" | 31"x19" | 25"x39" | 41"x30" | 43"x32" |
| H.P. REQUIRED | 5 H.P. | 7.5 H.P. | 10 H.P. | 20 H.P. | 30 H.P. |
| R.P.M. | 1440 | 1440 | 1440 | 1440 | 1440 |
| HEIGHT | 7'-6" | 8'-6" | 10'-6" | 11'-6" | 13'-6" |
